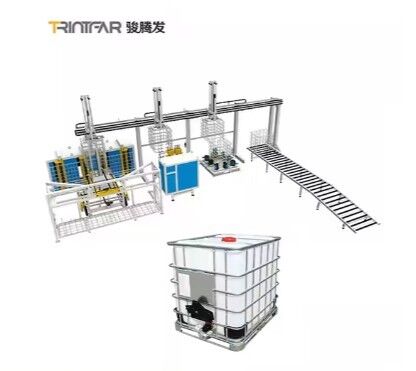

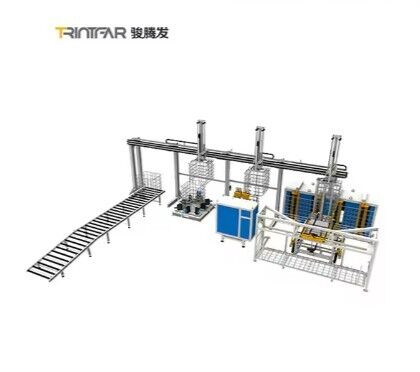

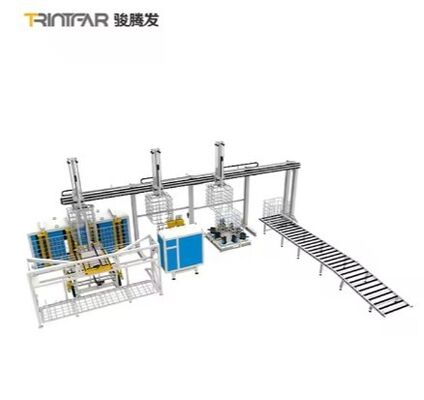

IBC Cage Frame production line Layout Diagram
Production Results
Equipment Configuration List
| NO | Equipment name | Unit | Quantity | Main functions |

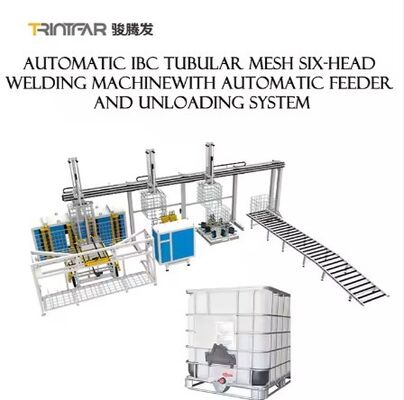

| 1 | Mesh gantry welding machine | Unit | 1 | Mesh multi-point welding |
| 2 | Mesh automatic feeding machine | Set | 1 | Automatic loading of long and short tubes |
| 3 | Mesh material taking manipulator | Unit | 1 | Mesh unloading (stacking) |
| 4 | Four-axis bending machine | Set | 1 | Bending and forming of mesh with shrinkage head |
| 5 | Locking machine | Set | 1 | Bending and interlocking of mesh |
| 6 | Flattening punching machine | Set | 1 | Punching and cutting of bottom tube under the frame |
| 7 | Frame manipulator | Set | 1 | Three manipulators moving up and down to grab the frame |
| 8 | Steel foot welding machine | Set | 1 | Welding of steel feet of bottom frame |
| 9 | Steel foot welding machine material taking manipulator | Set | 1 | Taking out, transferring and stacking of bottom frame after welding |
| 10 | Automatic airtight machine | Set | 1 | Testing the tightness of liner |
| 11 | Automatic double bending machine for bottom pipe | Set | 1 | Shrinkage, embossing and bending of bottom tube |
| 12 | Vibration test platform | Set | 1 | Testing the firmness and protection of IBC barrels |
